Coating dies for PE up to125 mm

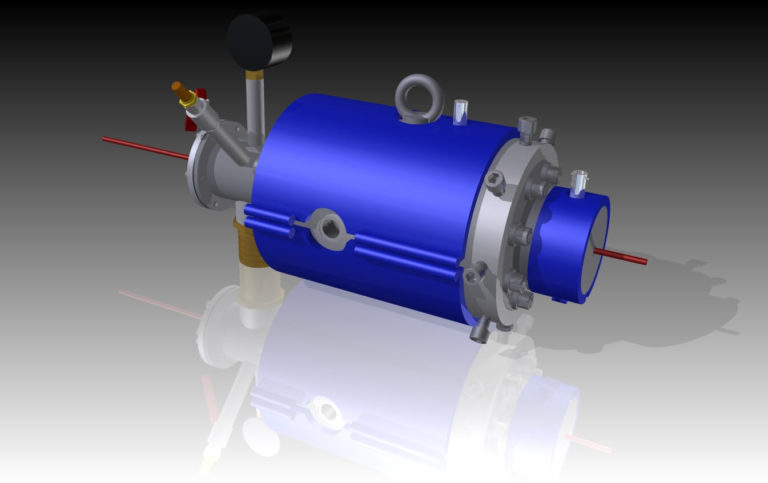

Coating dies for PE up to125 mm – product view 1

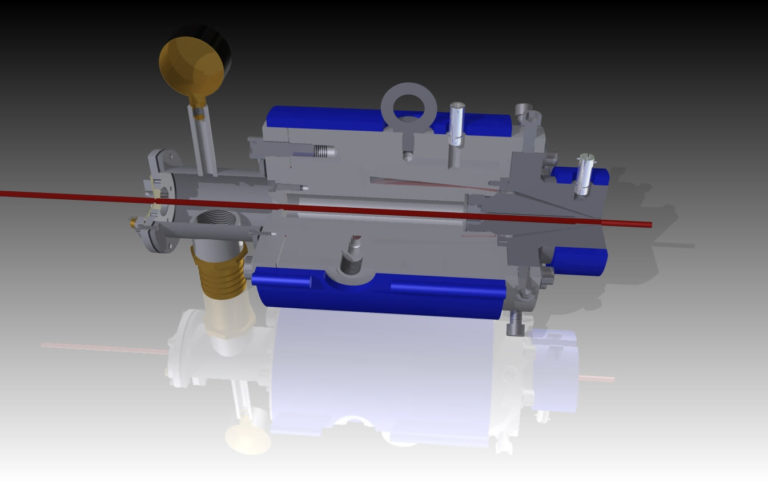

Coating dies for PE up to125 mm – product view 2

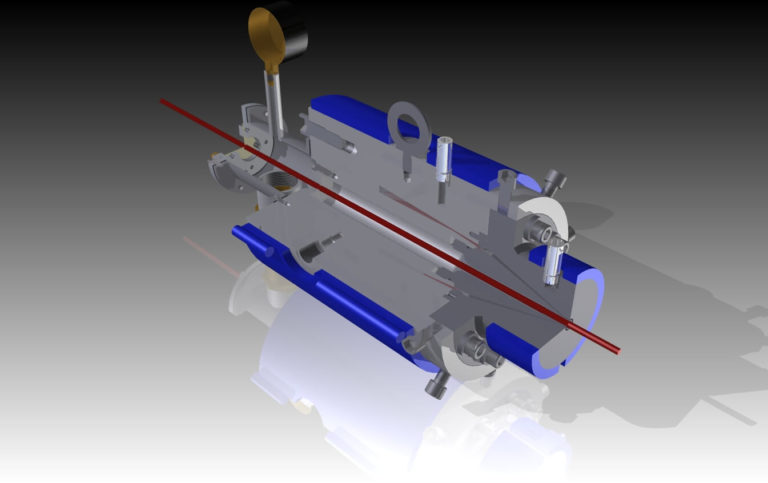

Coating dies for PE up to125 mm – product view 3

APPLICATION RANGE

For coating pre-manufactured pipes and rods with a PE jacket.

DESIGN

Heart formed distribution channel system (starting at U G 66 is the spiral distribution system available) with melt flow diverters and polished melt flow channels for proper melt distribution. Included are heating elements, thermocouple (Fe-CuNi) M14 × 1.5 without extruder coupling.

Also available with a vacuum chamber without blower pump.

Model Pipe range in mm
from – to		 Dimensions
Ø x length		 Weight
kg		 Heating power
kW
U G 12 4 -12 110 x 200 12 1,0
U G 20 8 - 20 130 x 240 24 1,5
U G 40 12 - 40 200 x 280 52 4,0
U G 55 20 - 55 230 x 320 80 5,0
U G 66 30 - 66 240 x 340 100 6,0
U G 110 35 - 110 300 x 400 250 15,0
U G 125 50 - 125 320 x 500 300 25,0
