APPLICATIONS FOR 3 LAYER PIPE DIES
For producing 2 or 3 layer internal core PEX* pipes with adhesive and EVOH coatings. Layer thickness between 0,05 – 0,1 mm. (by dimension 25 – 110 mm)
*Can also be used with the appropriate design for PB, PERT and PP-R, PE, PP.
3-layer dies design with spiral distributor system for the pipe production with a 10% outside layer, 80% middle layer and 10% inside layer for PE and PP processing.
Larger diameters between 160-800 mm are also available.

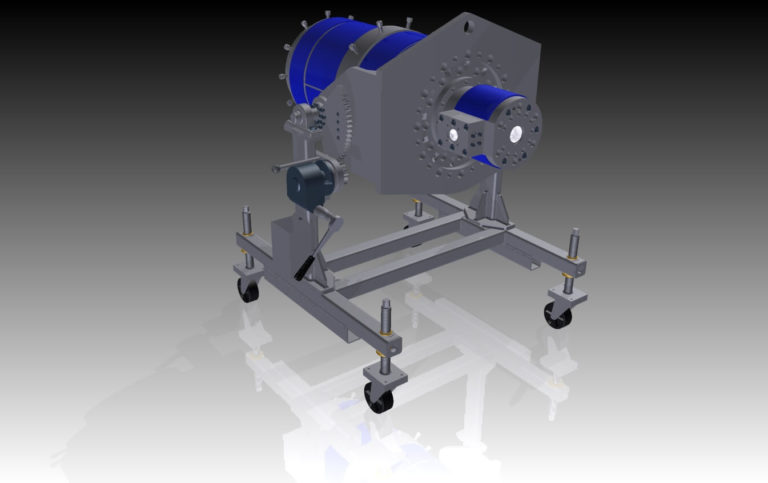

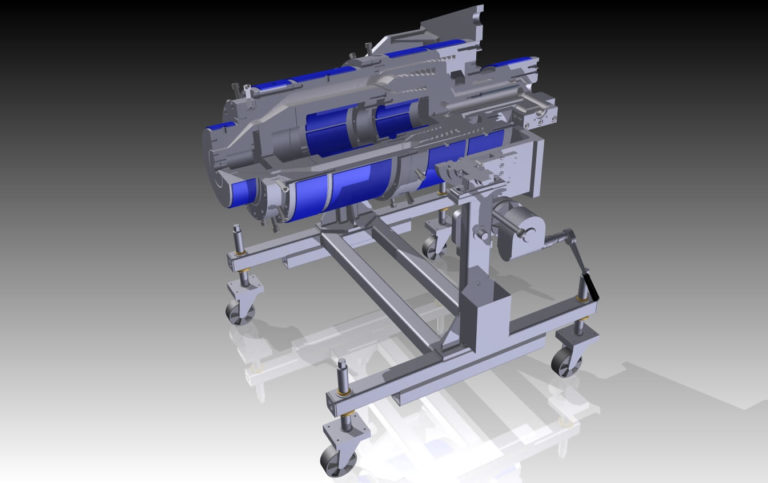

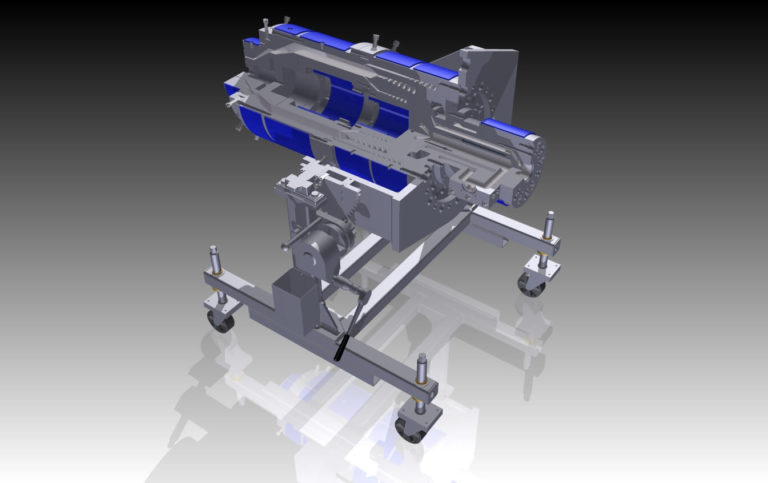

The photographs shown above show the 3 coex 160 die.
| Model | Pipe range in mm from – to |
max. output in kg/h |
max. heating each zone in kW |
Zones incl. U-insert |
|---|---|---|---|---|
| PEX 25/3 | 10 – 25 | 100 | 2,5 | 4 |
| PEX 40/3 | 12 – 40 | 180 | 3,0 | 4 |
| PEX 40/3 | 18 – 63 | 190 | 3,0 | 4 |
| PEX 75/3 | 25 – 75 | 210 | 4,5 | 4 |
| 3 COEX 250 | 25 – 250 | 300 | 5,5 | 11 |
G+G_3-Schicht_Rohrwerkzeug (PDF / 72.05 KB)
